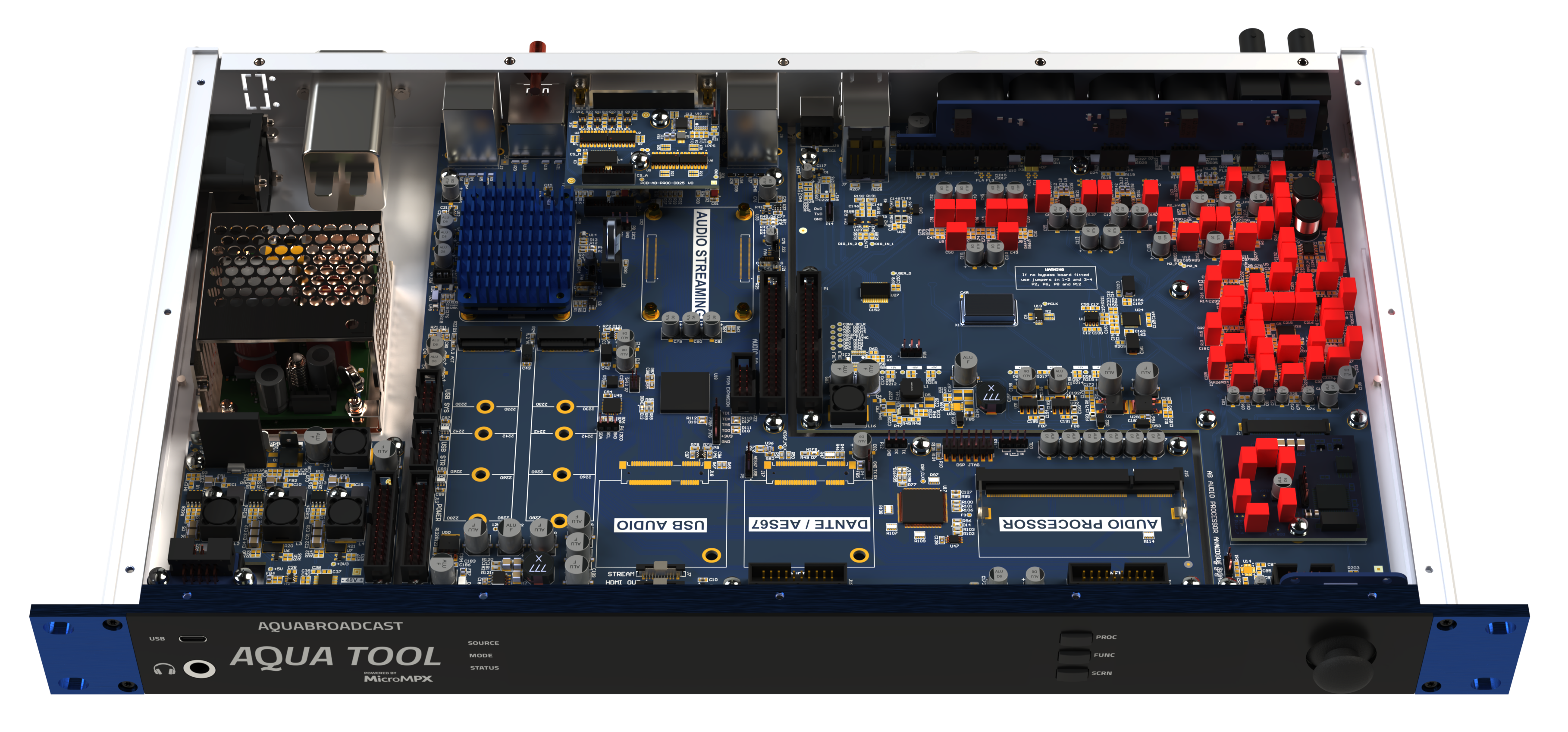

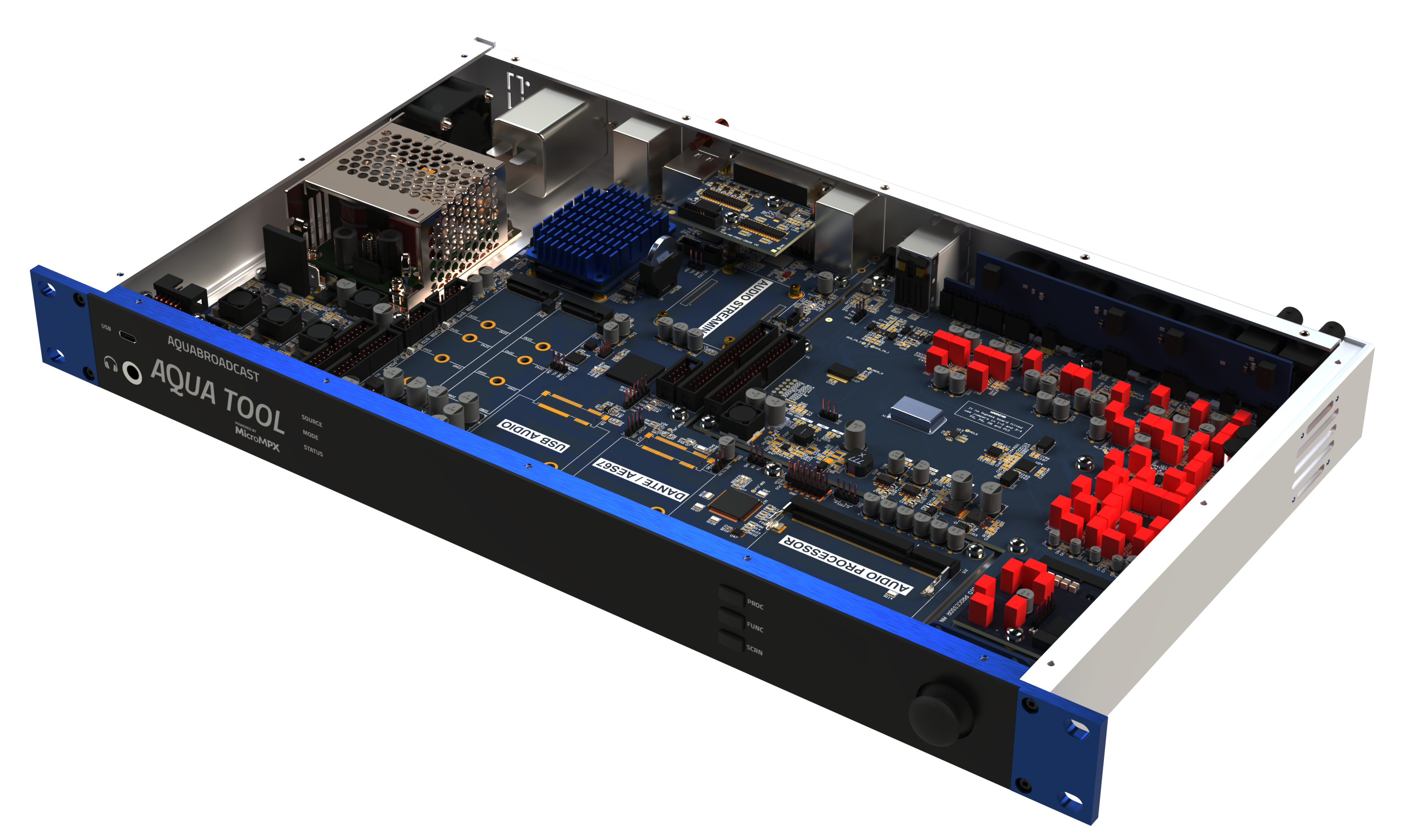

Aqua Tool - Powered by MicroMPX
The Aqua Tool – Powered by MicroMPX from Aqua Broadcast brings together world-class hardware and the industry-leading MicroMPX technology from Thimeo Audio Technology. Designed for environments that demand reliability, exceptional audio quality, and seamless integration.
Powered by a customised Linux operating system, the Aqua Tool ensures stable, high-performance operation. It is ready to deliver pristine FM audio as a fully integrated MicroMPX encoder or Decoder. Just choose the lisecnce typ when you order. With low bitrates, the Aqua Tool provides flexible, high-quality audio that connects effortlessly to any MicroMPX compatible product, and of course it pairs seamlessly with Aqua Broadcast COBALT transmitters with an optional MicroMPX license installed.
For broadcasters looking to expand their coverage, the optional MicroMPX SFN license transforms the Aqua Tool into a cornerstone of a Single-Frequency Network (SFN). When synchronized with GPS, the device can precisely align its broadcast with multiple transmitters on the same frequency. This capability is perfect for creating expansive coverage areas with seamless transitions and zero interference. The Aqua Tool's SFN functionality is an ideal match for Aqua Broadcast COBALT transmitters, which feature built-in 10MHz and 1PPS sync inputs.
It's got Dual LAN Ports: Redundant connectivity keeps your audio live even during network issues.
Full Remote Control: Manage, monitor, and adjust your broadcast from the studio—or anywhere in the world.
Easy Integration: Compatible with COBALT transmitters and other professional FM product.
User-Friendly Operation: Simple configuration and intuitive controls make it accessible for engineers of all experience levels.
Whether you operate a commercial FM network, or multi-site broadcast, the Aqua Tool delivers consistent, high-quality audio while simplifying your workflow.
With redundant connectivity, comprehensive remote control, and professional-grade features, it ensures your station stays on-air with complete confidence. The Aqua Tool isn’t just an encoder—it’s a reliable, versatile, and powerful partner for any FM broadcaster.
• Industry-leading MicroMPX encoding or decoding by Thimeo Audio Technology
• Optional SFN GPS synchronization for multi-transmitter networks
• Dual LAN redundancy
• Remote management from anywhere in the world
• Easy connection to COBALT transmitters
• Compact, reliable, and professional-grade design
- MicroMPX Encoder
- Web Browser GUI
- Coming soon
$ 2245 / € 1990 / £ 1730
STANDARD FEATURES
- Linux OS
- Dual RGB Screens
- MicroMPX
- Web Confidence monitoring
- Digital MPX (AES192)
- Dual LAN
- SNMP v1, v2c, v3
- Ethernet Control with HTTPS
- Advanced Automations
- Scheduler
- Failover and Silence Detection
- Backup Audio player via USB
- Shoutcast / Icecast Stream input
- HDMI
OPTIONS
- MicroMPX SFN Licence
- 48V DC power
GENERAL
| Input ACV @ 50/60Hz | 100-240VAC, 50/60HZ |
| Power Connector | IEC13 3A filtered |
| Optional DC power input | 48V |
| Dimensions WxDxH (inch) | 19x10.5 x 1RU (1.75”) |
| Dimensions WxDxH (cm) | 48.3 x 27 x 44 |
| Weight | 2.5kg / 5.51lb |
ENVIRONMENTAL
| Maximum operating Altitude | 15,000 ft / 4,420m AMSL |
| Temperature range | Direct-to-channel (DDS) |
| Humidity | VHF Band II, 87-108MHz |

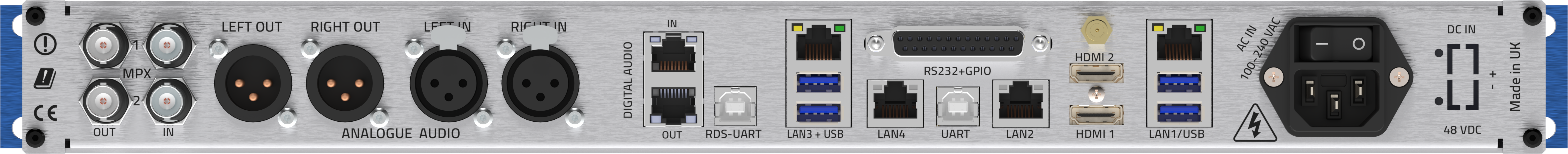

CONNECTIVITY
| 2x 1Gbit Ethernet (1 per CM5) | |
| 2x 100Mbit Ethernet with POE+ (1 per CM5, 1 shared with AES67 module) | |
| 4x USB 3.0 (2 per CM5) | |
| 1x USB 2.0 on the front panel | |
| 1x USB UART for primary CM5 | |
| 2x HDMI 2.0 (1 per CM5) | |
| Optional 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless on CM5 | |
| Optional Bluetooth 5.0, BLE on CM5 |

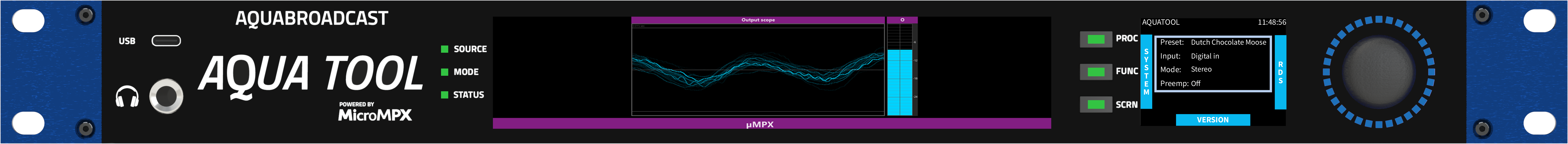

USER INTERFACE
| Primary display | -90kHz ±0.005dB |
| Secondary display | ≥100dB, with 75us de-emphasis |
| THD+N | Analogue joystick with 3 x silicone backlit buttons |
ANALOG AUDIO INPUT
| Stereo analogue audio input | 2 x XLR female, 10kΩ impedance level adjustable 0-24dBu |
ANALOG AUDIO OUTPUT
| Headphones Out | 2 x XLR female, 10kΩ impedance level adjustable 0-24dBu |
| Optional bypass relay module for power-off signal pass through |
DIGITAL AUDIO INPUTS
| 1 x AES/EBU Audio, RJ45 StudioHUB+, 48kHz, 24bits, 110Ω output impedance | |
| 1 x AES/EBU MPX, RJ45 StudioHUB+, 192kHz, 24bits, 110Ω output impedance |
DIGITAL AUDIO OUTPUTS
| 1 x AES/EBU Audio, RJ45 StudioHUB+, 48kHz, 24bits, 110Ω output impedance | |
| 1 x AES/EBU MPX, RJ45 StudioHUB+, 192kHz, 24bits, 110Ω output impedance |
ANALOG MPX OUTPUT
| Type | 2 x BNC female, 10Ω output impedance, level adjustable 0-12dBu |
ANALOG MPX INPUT
| 2 x BNC female, 10Ω output impedance, level adjustable 0-12dBu | |
| Optional bypass relay module for power-off signal pass through |
HEADPHONE OUTPUT
| 1/4” (6.3mm) female stereo socket | |
| Software adjustable volume | |
| Minimum load impedance 16Ω |
